EE16 Vertical Magnetic Core High Frequency Power Transformer for Power Charger
1.Product Description
1.Operating frequency: 20kHz-500kHz
2.Output power: 0.5W-15W
3.Operating temperature: Between -40℃ and +125℃
4.Storage conditions: temperature range from -25℃ to +85℃, humidity range from 30% to 95
2.Application
EE16 High Frequency Power Transformer is mainly used in the following fields:
1.Switching power supply: EE16 High Frequency Power Transformer as a high-frequency transformer is suitable for all kinds of switching power supply. Its high-frequency characteristics make the power supply conversion efficiency higher, and at the same time can reduce the size and weight of the power supply.
2.Charger: In the charger, EE16 High Frequency Power Transformer can ensure the safety and stability of charging. Choosing EE16 transformers with constant current and voltage function can effectively protect the charging equipment and battery.
3.LED driver: EE16 High Frequency Power Transformer are also used in LED driver circuit to provide stable power supply for LEDs to ensure normal light emission and prolong the service life of LEDs.
4.Power transformer: EE16 High Frequency Power Transformer can reduce the overall size of the power supply as much as possible, which is conducive to miniaturization, and is suitable for various power transformers.
5.Line filtering: EE type transformer is a basic ferrite core, stable performance, low cost, high current, widely used in power conversion and line filtering.

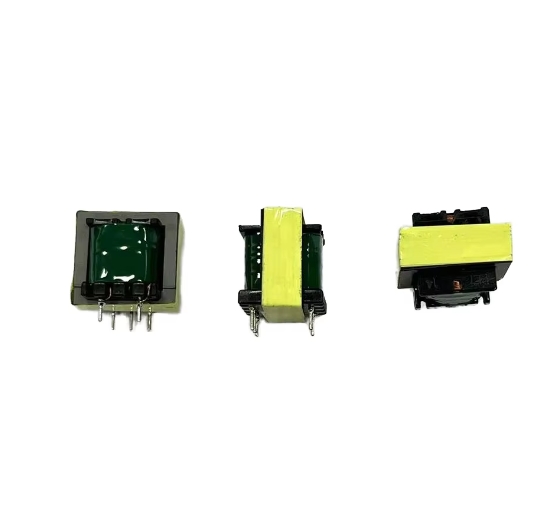

3.Product Pictures
4.Other Recommended Produtcs
| High Frequency Transformer Series |
| No. |
Model |
Specifications |
| 1 |
EE Series |
EE10-EE85 |
| 2 |
EF Series |
EF15-EF30 |
| 3 |
EFD Series |
EFD10-EFD50 |
| 4 |
PQ Series |
PQ2616-PQ5050 |
| 5 |
EER Series |
EER20-EER35 |
| 6 |
EC Series |
EC9.5-EC49 |
| 7 |
EI Series |
EI12.5-EI50 |
| 8 |
EPC Series |
EPC10-EPC54 |
| 9 |
ER Series |
ER9-ER90 |
| 10 |
ETD Series |
ETD19-ETD59 |
| 11 |
EP Series |
EP10-EP20 |
| 12 |
UF Series |
UF9.8-UF70 |
| 13 |
EEL Series |
EEL13-EEL27 |
5.Company Profile
6.FAQ
Q1: Do you provide service for custom design products?
A: Yes, we have the R&D department for custom designs,welcome to send any of your custom specifications.
Q2: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.
Q3: What is your lead time for samples and mass orders?
A: Usually 5-10 days for samples and 15-30 days for mass production, depending on the quantity and the raw material stock.
Q4: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.
